EUROStar III Plus
Features
• LED Lifespan is >50,000 hrs :Enormous cost saving
• Only 1/10th of the power consumption compared to the other Fluorescence Microscope.
• No UV radiation emission & explosion proof
• Provison for digital camera with 50/50 beam splitter that eliminates the need to transit between camera and eye pieces
• Transmitted light is integrated for bright & dark field microscopy and can be upgraded for phase contrast.
×
Request a Quote

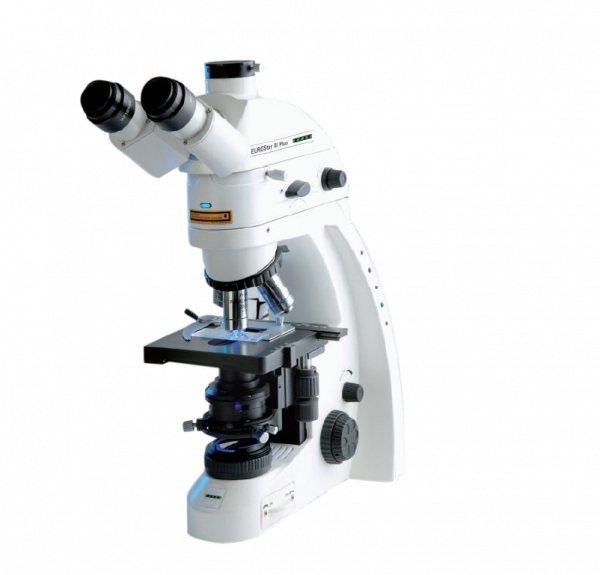

EUROStar III Plus - Immunofluorescence microscope
- Controlled light intensity for reliable IFA diagnostics
Technical Specification
Measurements |
|
| W x D x H. | approx. 187 × 410 × 449 mm |
| Weight | approx. 9.6 kg |
Power supply |
|
| Output voltage | 12 V (also rechargeable battery) |
| Supply voltage | 100 to 240 V |
| Power supply range | autom. voltage conversion |
LED light source EUROStar Bluelight |
|
| Excitation wavelength | 460-490 nm |
| Power | approx. 5 W |
| Product life | at least 50,000 hrs |
| Deterioration indicator | acoustic |
Filter set for FITC |
|
| Excitation filter | BP 450-490 nm |
| Beam splitter | FT 510 nm |
| Emission filter | LP 515 nm |
Opto-mechanical components |
|
| Objective change revolver | manual, 4-fold |
Objectives |
|
| Plan-Achromat | Plan-Achromat 10x / 0.25; 20x / 0.4; 40x / 0.65 |
| and Plan-Achromat 100x / 1.25 Oil | |
| Eyepieces | PL 10x / 20 Br. Foc. |
| Binocular phototube | 30°/20 |
| Fixed division | 50 % vis / 50 % doc |
| Max. number of viewing fields | 20 |
| Interpupillary distance | 48 to 75 mm |
| Viewing angel/height | 30 °/ 380 mm to 415 mm |
| Visual + Photo / Video port | tube factor 1× |
Stand |
|
| Stage focussing coarse drive | 45 mm |
| Stage focussing fine drive | 0.5 mm |
| Overall lift | 15 mm |
| Specimen stage | 75 × 30 mm R /L |
Additional equipment (optional) |
|
| Objectives | various from Carl Zeiss |
| EUROStar Photometer | EUROIMMUN (YG 0311-0101) |
Halogen light source |
|
| Lamp (controlable) | HLA 6 V, 30 W (1.5 to 6 V) |
| Colour temperature at 6 V | 2800 K |
| Light flux | 280 lm |
| Product life | approx. 1,000 h |
