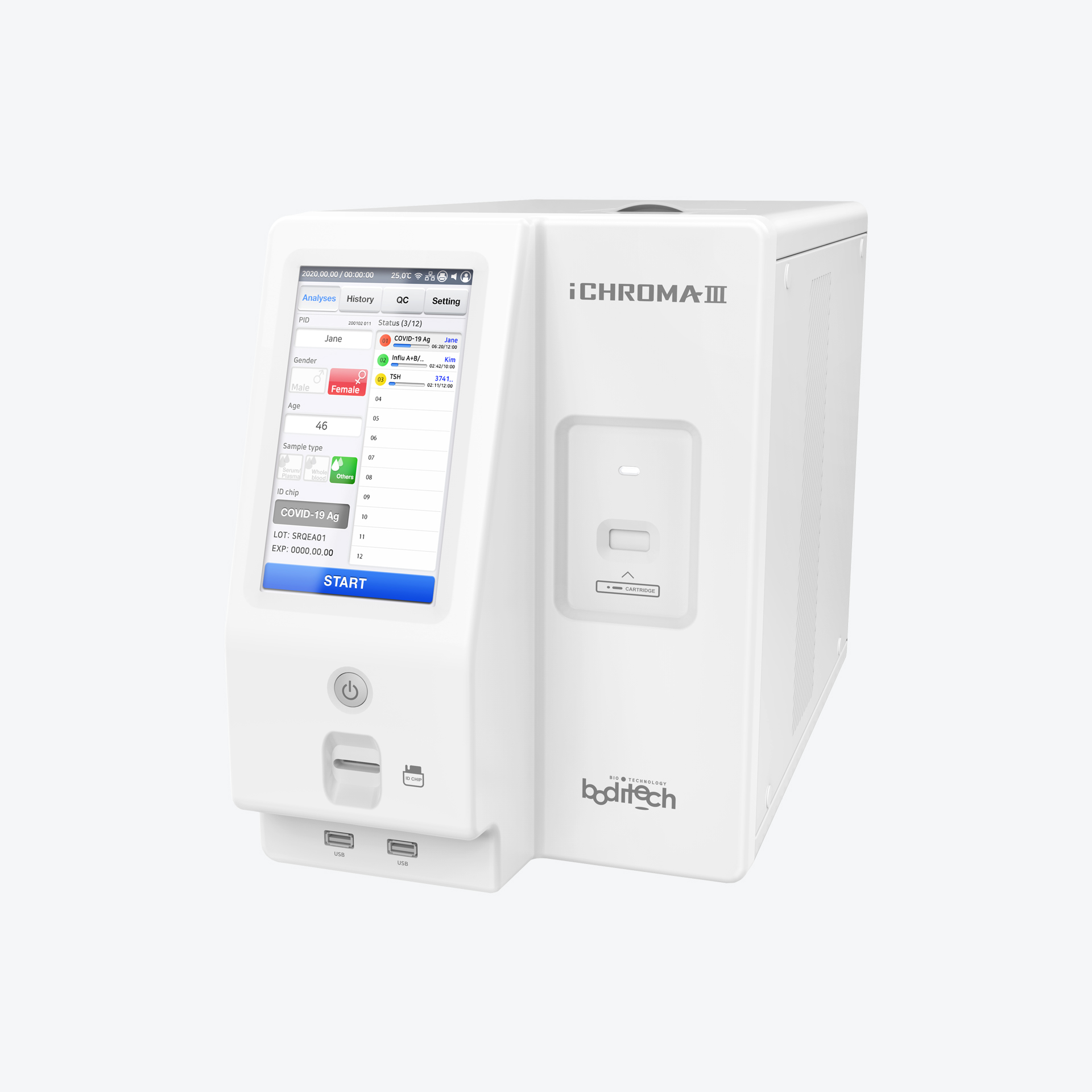

iChroma 3 POCT Hormone Analyzer
Features
• Fluorescence-based Lateral Flow Immunoassay.
• Random access for multiple parameters.
• High-throughput results- up to 120 tests / hour*
• Temperature control (25 – 35 ℃)
• Compatible with all ichromaTM cartridges*
• Save ID chip information to the analyzer
• Patient ID handwriting capturing.
×
Request a Quote
iChroma 3
- iChroma 3 is fully automatic fluorescence based hormone analyzer machine.
- High-throughput POCT-analyzer that enables simultaneous testing for multiple parameters
- ichroma™ III accepts cartridges for various biomarkers in random sequence and processes them at a preset temperature.
Technical specification
Product Name |
ichroma™ III |
Catalog No. |
FPRR037 |
Principle |
Fluorescence and Europium Nanoparticle Immunoassay |
Dimensions |
240 mm (W) X 465 mm (L) X 341 mm (H) |
Weight |
11 kg |
Power |
|
| Input power source | 100-240 AC |
| Rated frequency | 50-60 Hz |
| Rated current | 2.5-1.0A |
Display |
7-inch touch color LCD |
Communication ports |
USB 4 ports, LAN Port, USB OTG port, RS232C, SD CARD |
Operation temperature/humidity |
|
| Temperature | 15~35 °C |
| Humidity | 10-70 % (Non-condensing) |
Storage temperature/humidity |
|
| Temperature | -20~50 °C |
| Humidity | 10-70 % (Non-condensing) |
Output |
LCD, Built-in Printer |
Saving test results |
6,000 tests (Patient test 5,000 QC test 1,000) |
