iChroma 2 POCT Hormone Analyzer
Features
• Fluorescence-based Lateral Flow Immunoassay.
• Random access for single and multiple test modes
• Multi Test mode & Multi-timer function
• QC mode – Ensures accurate & reliable results
• Portable POCT that incorporates a graphical QC monitoring among manual POCT analyzers.
×
Request a Quote
iChroma 2

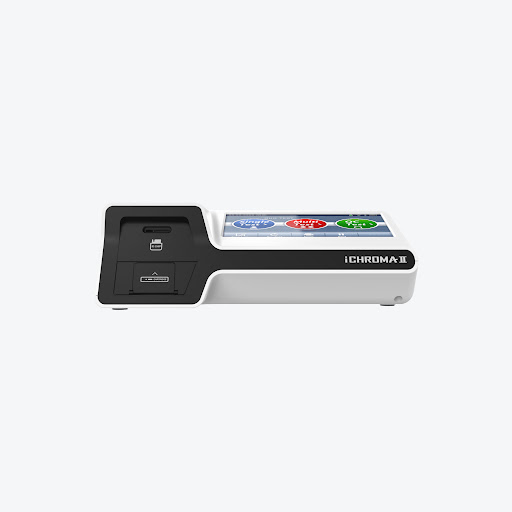

- ichroma™ II is a compact fully automatic hormone analyzer ,easy-to-use fluorescence-based POCT technology by Boditech POCT.
- ichroma 2 is used to measure the presence of various biomarkers for cardiac, cancer, hormones, infectious diseases, autoimmune diseases, and metabolic diseases. diseases, autoimmune diseases, and metabolic diseases.
Technical Specification
Product Name |
ichroma™ II |
Catalog No. |
FPRR021 |
Principle |
Fluorescence and Europium Nanoparticle Immunoassay |
Dimensions |
276 mm (W) X 220 mm (L) X 91 mm (H) |
Weight |
1.3 kg |
Power |
|
| DC | 12V/5 A |
| Adaptor | AC/DC Adaptor |
| Input | 100-240 V 50/60 Hz, 15 A |
| Output | DC 12 V/5A |
| Battery | DC 1.5 V x 4 ea |
Display |
7-inch touch color LCD |
Motor |
Stepper Linear Actuators (5 V, 0.34 A) |
Communication ports |
USB 4 ports, LAN Port, USB OTG port |
Operation temperature /humidity |
|
| Temperature | 15~35 °C |
| Humidity | 10-70% (Non-condensing) |
Storage temperature/ humidity |
|
| Temperature | -20~50 °C |
| Humidity | 10-70% (Non-condensing) |
Output |
LCD, Built-in Printer |
Saving test results |
|
| Patient test | 1,000 results |
| System check test results | 500 results |
| Control materials test results | 1,000 results |
