PLEXMAT 4
Features
• Plug & play : More than 25 Euroline assays preloaded in different groups
• Performs 4 immunoblot strips in a single run
• Different profiles can be run in one go either in batch mode or as a single test – Reduces TAT
• Automatic probe washing and liquid level sensors
• No additional reagent required, no hidden cost
• i-track connectivity for remote instrument monitoring and trouble-shooting
×
Request a Quote

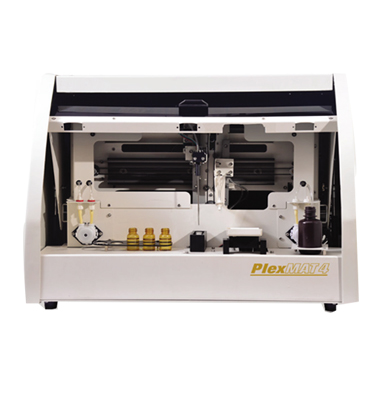

PLEXMAT - 4 Semi Automatic Immunoassay Analyzer
- A fully automated immunoblot processor is designed to process Euroline immunoblot tests with efficiency and reliability
- Four reagent channels allow the combination of tests from the areas of autoimmune diagnostics in one run.
- Features like automated sample dilution, incubation, probe washing and liquid level sensors enhance convenient operation.
- The walkaway instrument comes with user-friendly software, specially designed for small to mid-sized labs, Hospital laboratories, or satellite labs or chain diagnostic labs in the country.
Technical Specification
Input power supply |
230V AC (+/- 10%), 50Hz. |
Power consumption |
200 VA. |
Monitor |
Display with VGA port. |
Display |
Wide screen display. |
Display resolution |
1280×1024 pixels. |
Keyboard |
USB type. |
Mouse |
USB type. |
Scanner |
Make: Canon. |
Model |
LiDE 110/300. |
Number of PP pumps |
2 Nos. |
Syringe Module 2.5 mL |
1 No. |
Rocking speed |
35 Cycles/Minute (+/- 2). |
Rocking angle |
10° (+/- 1°). |
Number of stored assays |
26 Nos. |
Number of strips in one assay |
1 to 4 Nos. |
Dimensions |
53cm (W)x45cm (D)x39cm (H) |
Weight |
25Kg. |
