IF Sprinter


• Flexible systems for fully automated processing of immunofluorescence tests
• Reliability and traceability due to standard integrated barcode scanner for sample identification and the fully automated identification of slides via matrix codes (optional)
• Efficient pipetting without carryover using a washable pipetting needle
• Simplification of work processes in routine laboratories due to user-friendly data communication with an LIS or EUROLabOffice
• Capacity for up to 96 and 15 slides in one run


Request a Quote

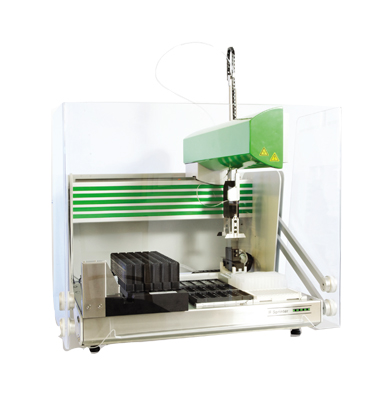

IF Sprinter - Fully automated IIFT slide processor

  • A fully automated indirect immunofluorescence test  processor is designed to  process EUROIMMUN IIF tests with efficiency and reliability.
  • An automated indirect immunofluorescence test processor
  • Automatic barcode scanners and sample probe offer a flexible solution for traceability and reliability.
  • The device performs identification, dilution and transfer of samples, as well as all washing and incubation steps.
  • The walkaway instrument comes with user-friendly software, especially crafted for Hospital labs, or corporate diagnostic labs in the country.

Technical Specification

   Sample capacity 96 positions (outer diameter 10 – 12 mm, height 55 – 100 mm)
   Sample recognition automatic for sample tubes, optional for slides
   Slides 15 (depending on the instrument configuration)
   Reagent positions 12 controls and 8 reagents
   Dilution positions 192 (deepwell- and/or uncoated microplate)
   Flexibility combination of up to 15 different parameters in one run
   Power supply 110 – 240 V, 500 VA, 50 / 60 Hz
   Pipetting unit
   Needle system 1 washable needle with capacitive liquid level detection
   Volume 5 – 1000 µl, in steps of 1 µl
   Accuracy CV < 6 % (< 5 µl); < 5 % (> 5 µl)
   Washer unit
   Washing method Washing method: flooding of the slides
   Wash head Wash head: 8-fold, 4 different buffers to be selected via the software
   Software and system requirements
   Operating software Operating software: Microsoft Windows 10 Enterprise 2019 LTSC (64 bits)
   Connection Connection: USB 2.0
   Bidirectional communication Bidirectional communication: ASCII, XML or HL7
   Width x depth 65 cm x 70 cm
