PLEXMAT 8

Features

• Plug & play : More than 25 Euroline assays preloaded in different groups
• Performs 8 immunoblot strips in a single run
• Different profiles can be run in one go either in batch mode or as a single test – Reduces TAT
• Automatic probe washing and liquid level sensors
• No additional reagent required, no hidden cost
• i-track connectivity for remote instrument monitoring and trouble-shooting

×

Request a Quote

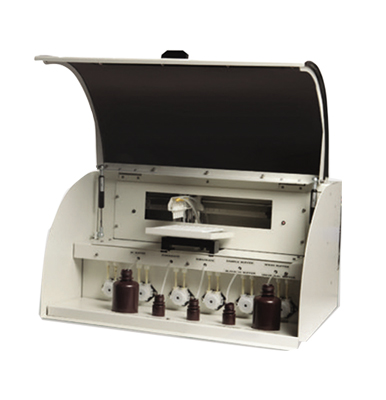

PLEXMAT -8 Semi Automatic Immunoassay Analyzer

  • A fully automated immunoblot processor is designed to process Euroline immunoblot tests with efficiency and reliability
  • Eight reagent channels allow the combination of tests from the areas of autoimmune diagnostics in one run.
  • Features like automated sample dilution, incubation, probe washing and liquid level sensors enhance convenient operation.
  • The walkaway instrument comes with user-friendly software, specially crafted for small to mid-sized labs, Hospital laboratories, chain diagnostic labs or corporate clinical laboratories in the country.

Technical Specification


   Input power supply
230V AC (+/- 10%), 50Hz.
   Power consumption
200 VA.
   Monitor
Display with VGA port.
   Display
Wide screen display.
   Display resolution
1280×1024 pixels.
   Keyboard
USB type.
   Mouse
USB type.
   Scanner
Make: Canon.
   Model
LiDE 110/300.
   Number of PP pumps
6 Nos.
   Rocking speed
35 Cycles/Minute (+/- 2).
   Rocking angle
10° (+/- 1°).
   Number of stored assays
26 Nos.
   Number of strips in one assay
1 to 8  Nos.
   Dimensions
51cm (W)x41cm (D)x29cm (H)
   Weight
20Kg.
